Mechanical Fail-Safe Door Strike for Glass Doors 800kg Holding Force

تفاصيل المنتج:

مكان المنشأ: الصين
اسم العلامة التجارية: JUNSON
إصدار الشهادات: CE/ROHS/FCC
رقم الموديل: JS-135F

شروط الدفع والشحن:

الحد الأدنى لكمية: 10pcs
الأسعار: قابل للتفاوض
تفاصيل التغليف: معبأة في الكرتون
وقت التسليم: 2-7 أيام عمل بعد تلقي دفعتك
شروط الدفع: T/T ، PayPal أو Western Union مقدمًا
القدرة على العرض: 30،000 ٪ في الشهر
افضل سعر اتصل

معلومات تفصيلية

نموذج: JS-135F اسم المنتج: ضربة كهربائية
ميزة: فشل آمن NC-عدم نوع: قابل للتعديل
مزود الطاقة: 12 فولت إشارة الخروج: ن/أ
هيكل الإضراب: صب الزنك بالقالب قوة القابضة: 800 كجم

منتوج وصف

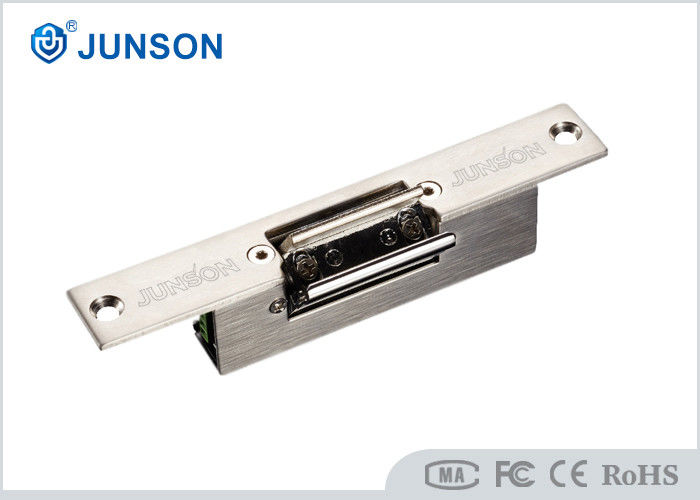

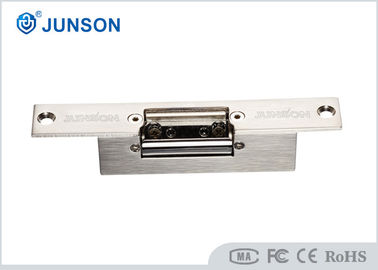

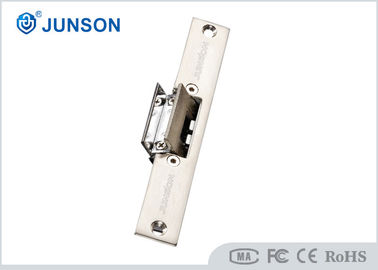

Mechanical Fail-Safe Door Strike for Glass Door with 800kg Holding Force



JS-135F lock is designed for narrow frame doors, featuring an adjustable spring bolt for continuous open mode. A versatile, durable solution from our full product range.





Parameters:


Lock Dimension

160Lx25Wx31H(mm)

Weight 0.4kg

Standard Packing

60pcs

Cartons size 54L * 20W * 30.5H (cm)

Holding Strength

800kg

Style

Fail Safe

Voltage

12V DC

Current

200mA

Available lock

Rim lock,  mechanical lock

Suitable for

Narrow wooden door, narrow metal door

Special design

Adjust lock tongue to NO type

Surface Temp

  Within + 20℃

Operating Temp

-10℃ - 55℃

Suitable Humidity

0-90% (non-condensing)

Finishing for lock

Coating nickel

Strike Structure

Stainless Steel





Features:

  • High Holding Force: Supports up to 800kg.

  • Durable Materials: Constructed with aluminum housing and stainless steel bolt.

  • Reliable Performance: Tested to over 1,000,000 cycles for long-term use.

  • Certified Quality: CE certified by the European Union and MA certified by China Public Security Office.

Mechanical Fail-Safe Door Strike for Glass Doors 800kg Holding Force 0





FAQ:



Q: Whats your MOQ?

A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.



Q: Do you provide sample ? Is it free?

A: If the sample is low value, we will provide the free sample with freight collect. But for some high value samples, we need to collect the sample charge.



Q: How can I get a quote?

A:Contact us with specification: such as material, design, size, shape, color, quantity, surface finishing, etc.



Q: What's the trade term and payment term?

A:Amount less than $1000, 100% paid before production, more than $1000 can be negotiated!



Q: How long is your delivery time?

A: The general delivery time is 30-45 days after receiving your order confirmation. Another, if we have the goods in stock, it will only take 1-2 days.





Quality Control



We have QC person stay on the production lines do to the inspection.All products must have been inspected before delivery.we do inline inspection and final inspection.

1.All raw material checked once it arrive our factory.

2.All pieces and logo and all details checked during production.

3.All packing details checked during production.

4.All production quality and packing checked on final inspection after finished.
