تفاصيل المنتج:

مكان المنشأ: الصين
اسم العلامة التجارية: JUNSON
إصدار الشهادات: CE/FCC
رقم الموديل: شبيبة-H901

شروط الدفع والشحن:

الحد الأدنى لكمية: 10 قطعة
الأسعار: قابل للتفاوض
تفاصيل التغليف: معبأة في الكرتون
وقت التسليم: 2-7 أيام عمل بعد استلام المبلغ المدفوع
شروط الدفع: / تي تي، بايبال أو ويسترن يونيون مقدما
القدرة على العرض: 5000 جهاز كمبيوتر شخصى شهريا
افضل سعر اتصل

معلومات تفصيلية
ماركة: جونسون نموذج: شبيبة-H901
درجة حرارة: -10 درجة ~ 55 درجة مئوية درجة حرارة السطح: <20 درجة مئوية
إنهاء القضية: الانتهاء من سحب الأسلاك مناسبة ل: جميع أنواع الأبواب المفردة والمزدوجة المقاومة للدخان
مواد القضية: 304 الفولاذ المقاوم للصدأ، تشطيب سحب الأسلاك حجم لوحة المغناطيس: ضياء 55 ملم

منتوج وصف

Stainless Steel ANSI Wall-Mounted Door Holder


Model: JS-H901

American-Type Wall-Mounted Door Holder features low power consumption, making it more energy-efficient and environmentally friendly while ensuring long-term durability. It includes a manual door release button, a built-in test release button, and integrated MOV reverse current protection to enhance safety and reliability.







Specifications

  • Dimensions: 114 × 70 × 29 mm (L × W × H)

  • Magnet Plate Size: Ø55 mm

  • Holding Force: 70 kg / 120 lbs

  • Operating Voltage: 12V DC or 24V DC (24V by special order)

  • Standby Current: 140 mA @ 12V, 70 mA @ 24V

  • Housing Material: 304 Stainless Steel with wire-drawn finish

  • Application: Suitable for all types of single and double smoke-proof doors

  • Armature Finish: Zinc plating

  • Color: Silver

  • Case Finish: Wire-drawn finish

  • Release Button: Manual red door release button

  • Surface Temperature: < 20°C

  • Operating Temperature: -10°C to 55°C

  • Operating Humidity: 0–90% RH

  • Net Weight: 1.0 kg

  • Standard Packing: 20 pcs per carton

  • Carton Size: 60 × 35 × 16.5 cm

  • Gross Weight: 23 kg





Features

  1. High Holding Force: Colinear load tested to 70 kg (120 lbs) for reliable door holding performance.

  2. Dual Voltage Support: Default 24V DC, adjustable to 12V DC as required.

  3. Reverse Current Protection: Built-in MOV protects against reverse current and voltage spikes.

  4. Low Power Consumption: Energy-efficient design that is environmentally friendly.

  5. Manual Door Release: Integrated release button allows immediate door release when pressed.

  6. Anti-Residual Magnetism: Ensures stable operation and prevents sticking.

  7. Professional Construction: Dual insulated housing for enhanced safety and durability.

  8. Fire Safety Function: Automatically releases and closes smoke-proof doors in case of fire.

  9. Flexible Installation: Suitable for floor mounting or glass door applications.

  10. Fail-Safe Operation: Door is released automatically when power is cut.

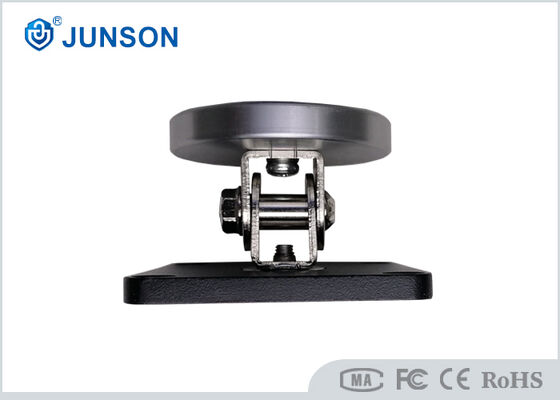

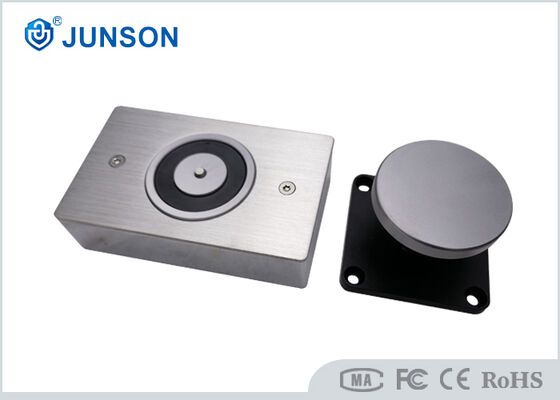

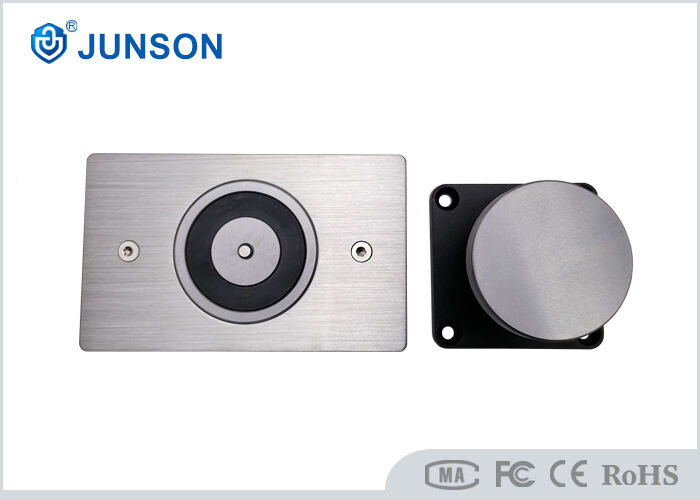

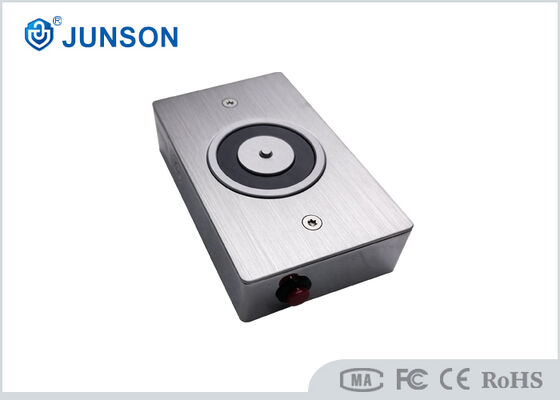

Photo of door holder:
120 lbs Wall-Mounted Door Holder – Heavy-Duty Stainless Steel Design 0
120 lbs Wall-Mounted Door Holder – Heavy-Duty Stainless Steel Design 1




FAQ:



Q: Can I request a new sample made with my own design for confirmation?
A: Yes. The sample fee is considered a setup charge for the production line. For small quantities, we recommend proceeding directly to mass production. For larger quantities, we suggest making a sample first; in this case, the sample fee can be refunded after order confirmation.



Q: How do I place an order?
A: You can place an order by emailing us your inquiry or submitting it through our website. We will provide a quotation promptly, and once the order is confirmed, production will begin accordingly.



Q: What payment and shipping options are available?
A: We accept multiple payment methods, including T/T, PayPal, and Western Union. You may use your own shipping agent or choose ours. Shipping options include sea freight, air freight, and express delivery (DHL, FedEx, TNT, UPS, etc.).



Q: How can I obtain a sample to evaluate product quality?
A: Samples are available upon request. Please contact us for details regarding sample availability and freight costs.



Q: When can I expect to receive my order?
A: Delivery time depends on order quantity and the selected shipping method. Please consult us in advance for an estimated delivery schedule.
